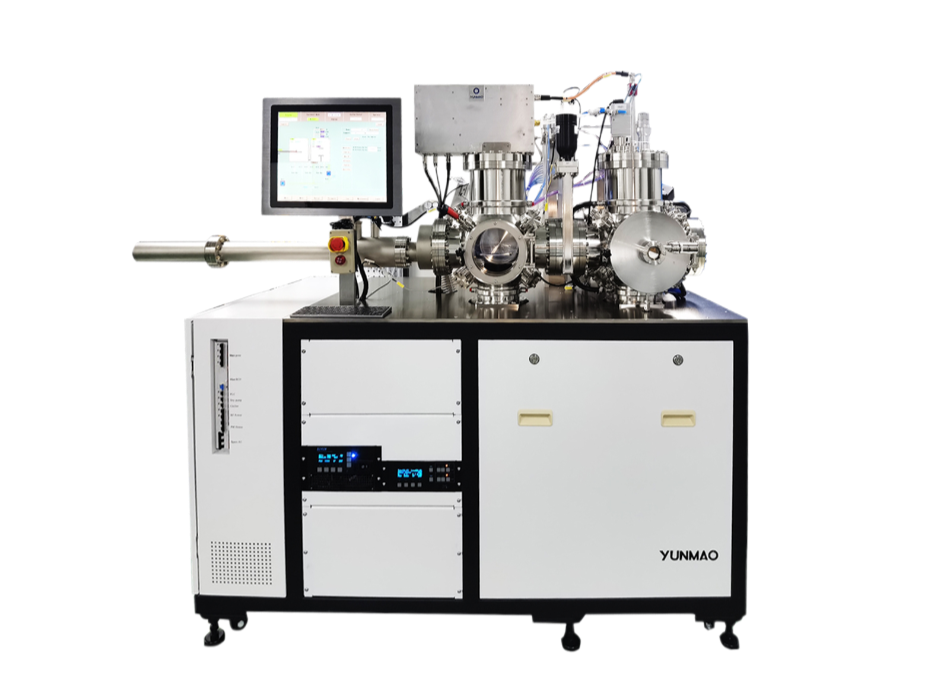

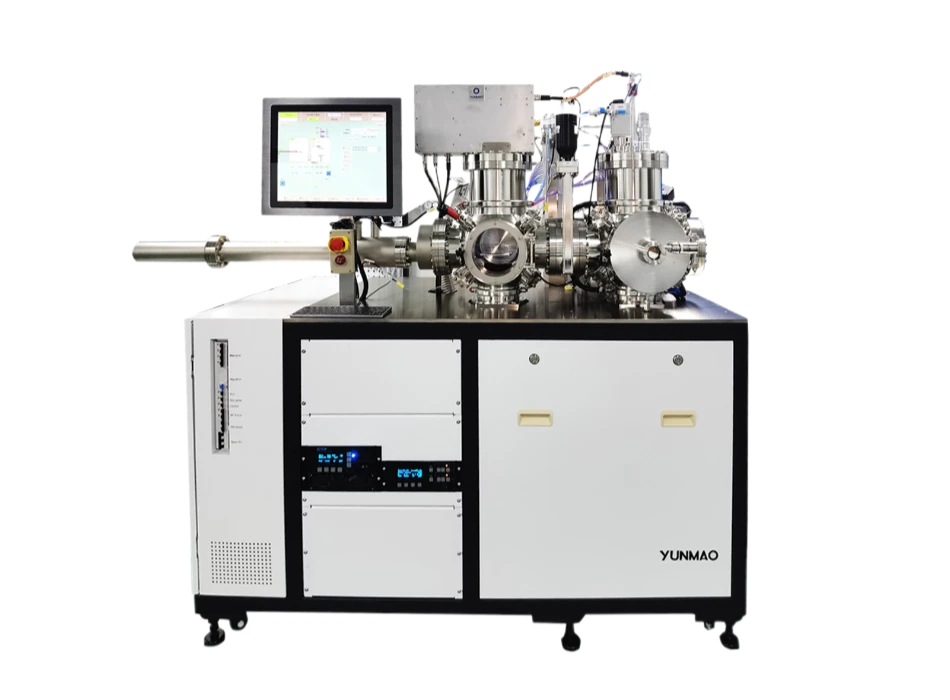

PVD-100 Dual-chamber High Vacuum Magnetron Sputtering System-PVD-100 Dual-chamber High Vacuum Magnetron Sputtering System

PVD-100 Dual-chamber High Vacuum Magnetron Sputtering System

Yunmao Product Overview

PVD-100 includes two ultra-high vacuum chambers Load Lock and Sputtering, equipped with a fully automatic operation interface. RF power supplies are compatible with metallic or non-metallic materials.

Yunmao Technical Advantages

Wafer Heating: RT-900ºC

Wafer Transfer: Highly reliable and repeatable substrate transferring capability

UHV Chamber: 2 UHV Chambers, Loadlock and Sputtering

Ultimate Pressure: <5E-8Torr

Pumping Spead: From ATM to 1E-7Torr<20min (loadlock)

Sputtering: DC or RF power supply, wafer and target space can change continoulsly

Ion Milling: Kaufman Ion Source, Ion Energy 100-600eV, 100-1200eV; Ion Beam Current: 20-200mA, Etching uniformity <±6% on Ø100 mm substrates

HMI: Fully Automated Human-Machine Interface
